Description

Consistent GBBR Performance: Crimson NPAS for VFC / APFG / Maruyama

Get greater control over your GBBR’s power output with the Waldo Dynamics Crimson NPAS for VFC, APFG and Maruyama. Developed in collaboration with Bristol Based Airsoft, this compact upgrade is designed to give players an easy way to tune their rifle’s FPS and Joule output while also improving shot-to-shot consistency.

The key difference with the Crimson NPAS is its tighter internal bore. Waldo Dynamics designed the system specifically to provide more consistent FPS results in the 0.9-1.2J range, making it particularly useful for UK players looking to keep a GBBR running consistently around common site power limits. The NPAS can also be adjusted to achieve higher energy outputs where appropriate, with Waldo Dynamics reporting testing beyond 2J with standard barrel lengths and 0.36g BBs.

Technical Specifications

Key Features & Performance

• Fine-tune FPS and Joule output on compatible GBBRs
• Tighter internal bore designed for improved shot-to-shot consistency
• Optimised for consistent performance around 0.9-1.2J
• Simple adjustment using a standard 1.5mm hex key
• Adjustable through the front of the installed nozzle
• Compatible with a wide range of VFC, APFG and Maruyama GBBRs
• Stronger nylon polymer construction
• Distinctive Crimson red finish for easy identification
• Useful for tuning performance across different BB weights and gas pressures
• Can also be adjusted for higher energy outputs where appropriate

Compatible GBBR Platforms

The Crimson NPAS is compatible with a wide range of VFC, APFG and Maruyama gas blowback rifles. Confirmed compatible platforms include:

• VFC URGI GBBR – all variants
• VFC 416 GBBR – all variants
• VFC BCM GBBR – all variants
• VFC SR-16 GBBR – all variants
• VFC AK GBBR – all variants
• VFC 727 GBBR
• VFC M933 GBBR
• VFC M733 GBBR
• VFC M16A1 / M16A2 GBBR
• VFC XM177E2 GBBR
• VFC MP7 GBBR
• VFC SR25 / M110 GBBR
• VFC SCAR-H GBBR – all variants
• VFC 417 / G28 GBBR
• VFC PSG1 GBBR
• VFC T91 GBBR – all variants
• VFC G36 GBBR – all variants
• VFC G3 / HK53 GBBR
• VFC FAL / OSW GBBR
• VFC FNC GBBR – all variants
• VFC UMP45 / UMP9 GBBR
• VFC PPSH GBBR
• APFG MCX GBBR – all variants
• APFG MPX GBBR – all variants
• Maruyama ISO 556 GBBR
• Maruyama APC9 / SCW9 / SPC9 GBBR – all variants
• Marksman K1A GBBR

The “Pro” Take

If you are running a GBBR, consistent performance can be just as important as outright power. Gas pressure, temperature and BB weight can all influence the way a rifle performs, so having a reliable method of tuning the output can make a real difference when setting up a rifle for different games and conditions.

The Crimson NPAS takes this a step further by using a tighter internal bore than a conventional setup. Waldo Dynamics specifically designed it to improve consistency around the 0.9-1.2J range, making it particularly interesting for players who want their VFC, APFG or Maruyama GBBR to stay closer to its intended power level throughout a game.

The Crimson red nylon construction also makes the component easy to identify on the tech bench. Small upgrade, simple adjustment and a wide compatibility range – exactly the sort of part that makes sense once you start properly tuning a GBBR.

UK Spec & Site Performance

For UK players, an adjustable NPAS can be particularly useful when setting up a GBBR for different sites. The Crimson NPAS allows the rifle’s output to be adjusted rather than relying on a fixed nozzle configuration, with the tighter bore specifically designed to help maintain consistency around the 0.9-1.2J range.

Always check the individual site’s current FPS and Joule limits before making adjustments. Your finished rifle should be chronographed using the site’s required BB weight and testing procedure, and the NPAS should never be treated as a substitute for checking the rifle’s actual measured output.

Friendly FAQ

What does the Crimson NPAS do?
The Crimson NPAS allows you to adjust the gas output of a compatible GBBR, giving you control over the rifle’s FPS and Joule output. Its tighter internal bore is also designed to improve shot-to-shot consistency.

What makes the Crimson NPAS different?
The main difference is the tighter internal bore. Waldo Dynamics designed the NPAS to provide more consistent FPS results around the 0.9-1.2J range while retaining the ability to adjust the rifle to higher energy outputs when appropriate.

How do I adjust it?

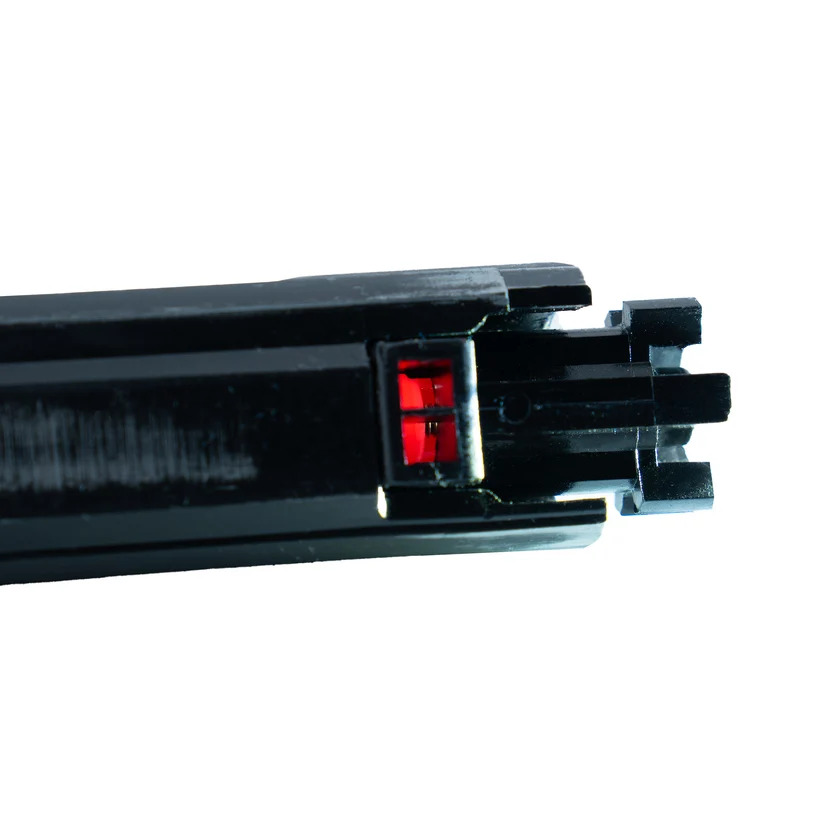

Once installed, remove the bolt from the GBBR and use a 1.5mm hex key through the front of the nozzle. Turn clockwise to reduce energy output or counter-clockwise to increase it. Always test the rifle after making an adjustment.

Which rifles is it compatible with?
It is designed for a wide range of VFC, APFG and Maruyama GBBRs, including VFC AR platforms, AKs, MP7, SCAR-H, 417/G28, G36, G3, UMP, PPSH and more, as well as APFG MCX and MPX and Maruyama ISO 556 and APC9/SCW9/SPC9 platforms.

Is it suitable for a VFC AK?
Yes. The Crimson NPAS is specifically listed as compatible with VFC AK GBBRs, along with a wide range of other VFC platforms.

Can it be adjusted above 1.2J?
Yes. The 0.9-1.2J range is where the NPAS is designed to provide particularly consistent results, but the system can be adjusted for higher outputs where appropriate. Waldo Dynamics reports testing beyond 2J using standard barrel lengths and 0.36g BBs. Actual output will vary depending on the rifle, barrel, BB weight, gas and other factors.

Is installation difficult?
Installation requires some airsoft technical knowledge and basic tools. Once installed, adjustment is straightforward using a 1.5mm hex key. Take care not to completely unscrew the adjustment screw when making changes.
